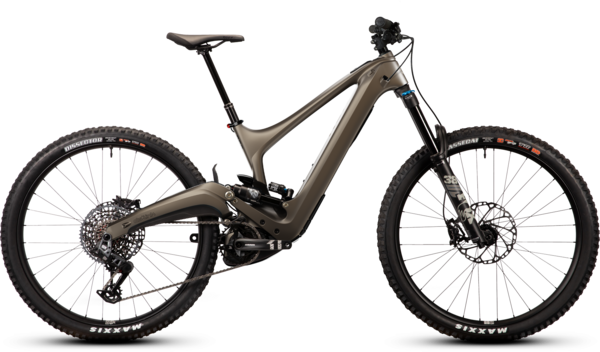

Ibis Oso

Ibis Oso
  • Color: Grizzly Bronze
  • Color: Grizzly Bronze
  • Color: Grizzly Bronze
  • Color: Smokey Black
  • Color: Smokey Black
  • Color: Smokey Black
  • Color: Smokey Black
  • Color: Smokey Black
$5,999.00
Color:
Size: Select size
Wheel Size: Select wheel size
Battery: 750Wh
Please select options Unavailable

Details

A whole new sport calls for a whole new bike. The full-carbon-fiber Oso features a dw-link rear suspension that optimizes efficiency and control, pairing 155mm of rear travel with 170mm up front. Powered by a Bosch Performance Line CX motor and a 750 Wh battery, the Oso delivers exceptional performance on any terrain—making every ride feel like it’s Downhill Both Ways™.

Key Features:
- 170mm Front Travel
- 155 Rear Travel
- Bosch CX Motor
- 750 Wh Battery, UL certified
- Dw-link Suspension
- Air and Coil Compatible
- SRAM GX Transmission drivetrain
- XT brakes with 220mm rotors
- Size Specific Chainstays and Wheel Size
- Lifetime Frame and Rim Warranty

Frame SizeSMMDLGXL
Seat Tube Length (mm/in) 394 / 15.5 415 / 16.3 415 / 16.3 427 / 16.8
Top Tube Length (mm/in) 573 / 22.6 607 / 23.9 638 / 25.1 669 / 26.3
Head Tube Length (mm/in) 90 / 3.5 106 / 4.2 122 / 4.8 139 / 5.5
Chainstay Length (mm/in) 439 / 17.3 439 / 17.3 444 / 17.5 444 / 17.5
Seat Tube Angle (degree) 77° 77° 78° 79°
Head Tube Angle (degree) 64° 64° 64° 64°
Wheelbase (mm/in) 1206 / 47.5 1242 / 48.9 1294 / 50.9 1341 / 52.8
Bottom Bracket Height (mm/in) 341 / 13.4 341 / 13.4 340 / 13.4 340 / 13.4
Bottom Bracket Drop (mm/in) 31 / 1.2 31 / 1.2 31 / 1.2 31 / 1.2
Stack (mm/in) 621 / 24.4 635 / 25.0 650 / 25.6 665 / 26.2
Reach (mm/in) 430 / 16.9 460 / 18.1 500 / 19.7 540 / 21.3
Saddle Height (mm/in) 655 / 25.8 705 / 27.8 765 / 30.1 820 / 32.3
Standover Height (mm/in) 677 / 26.7 714 / 28.1 729 / 28.7 731 / 28.8
Trail (mm/in) 132 / 5.2 132 / 5.2 132 / 5.2 132 / 5.2
SizeHeight Range (cm/in)
S 152–163 cm / 5'0"–5'4"
M 160–173 cm / 5'3"–5'8"
L 170–185 cm / 5'7"–6'1"
XL 183–196 cm / 6'0"–6'5"

Specs

Frame Ibis Oso
Fork Fox Performance Series, Float 38, 170mm, 29”, 110mm x 15mm
Rear Shock Fox Performance ELITE Series, X2, 205mm x 60mm
Wheels Front: Blackbird Send I 29" Rear: Blackbird Send II 29", Aluminium, Ibis Hub
Rims Front: Blackbird Send I 29" Rear: Blackbird Send II 29"
Hubs Ibis Logo
Tires Small/Medium Front: Maxxis Assegai, 29” x 2.5”, 3C MaxxGrip, DH, TR Rear: Maxxis Minion DHR II 27.5” x 2.4” | Large/X-Large Front: Maxxis Assegai, 29” x 2.5”, 3C MaxxGrip, DH, TR Rear: Maxxis Minion DHR II 29” x 2.4”
Crankset SRAM X1 E-MTB
Chainrings 34t Steel Ring
Shifters Eagle AXS Controller
Rear Derailleur SRAM GX, Eagle Transmission
Cassette/Freewheel SRAM GX, Eagle Transmission, 10–52T
Chain SRAM GX, Eagle Transmission
Brakes Shimano XT, M8120, 4 piston
Rotors Shimano SM-RT66, 220mm
Brake Levers Shimano XT, M8120
Handlebars Blackbird Hi Fi, 31.8mm, 30mm Rise, 800mm
Tape/Grips Lizard Skin Charger EVO
Stem Ibis, 31.8mm, 50mm
Headset Cane Creek 40 ZS44/ZS56
Seatpost Bike Yoke Revive 31.6mm, LG: 185mm
Saddle SDG Bel-Air, V3
Accessories & Extras 900 lumen Lupine SL F Nano front light
Motor Bosch Performance Line CX
Battery Removable Bosch Powertube 750 Wh

* Subject to change without notice.

Part Numbers

Option UPC MPN
750Wh / Grizzly Bronze / Large / 29-Inch 840345314611 0:OSC3BZSG2AL3525
750Wh / Grizzly Bronze / X-Large / 29-Inch 840345314635 0:OSC4BZSG2AL3525
750Wh / Grizzly Bronze / Small / 29-inch front / 27.5-inch rear 840345314574 0:OSC1BZSG2AL3525
750Wh / Grizzly Bronze / Medium / 29-inch front / 27.5-inch rear 840345314598 0:OSC2BZSG2AL3525
750Wh / Smokey Black / Large / 29-Inch 840345314604 0:OSC3BKSG2AL3525
750Wh / Smokey Black / X-Large / 29-Inch 840345314628 0:OSC4BKSG2AL3525
750Wh / Smokey Black / Small / 29-inch front / 27.5-inch rear 840345314567 0:OSC1BKSG2AL3525
750Wh / Smokey Black / Medium / 29-inch front / 27.5-inch rear 840345314581 0:OSC2BKSG2AL3525
