DOWNHILL BOTH WAYS

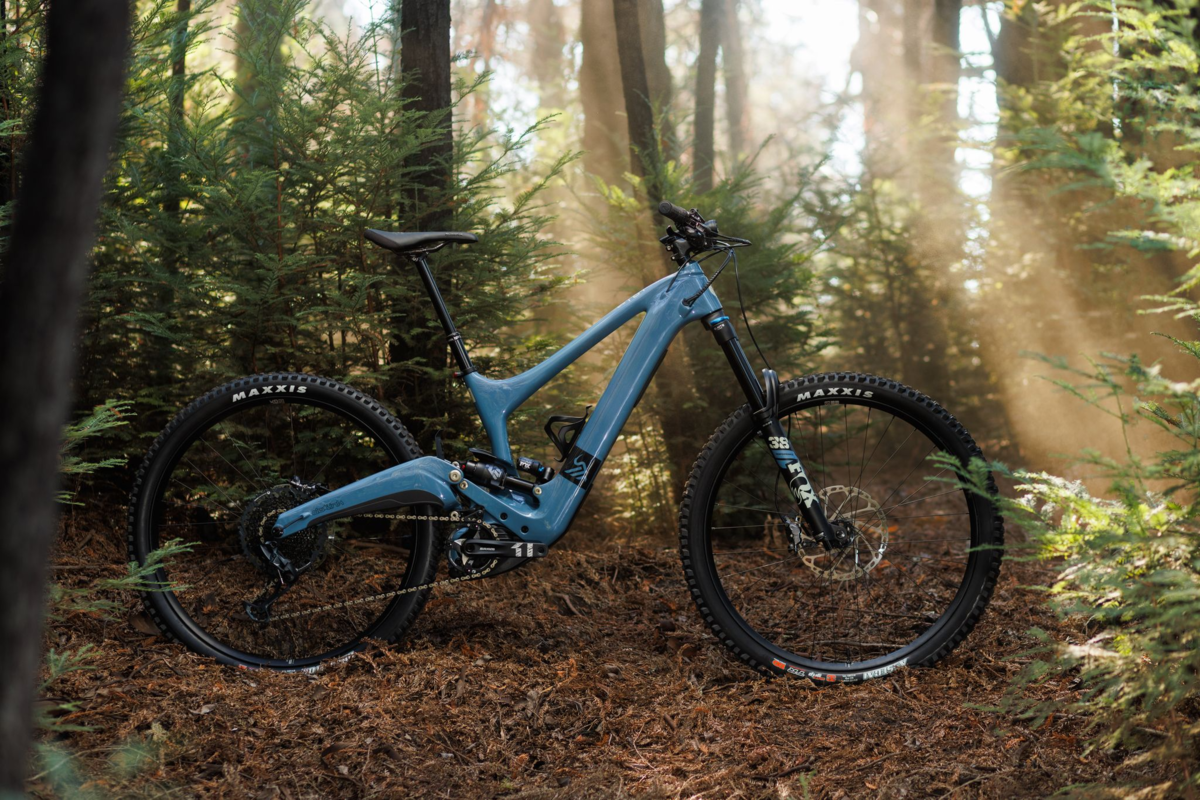

A whole new sport demands a whole new bike. Built from the ground up to deliver a new level of smooth, fast and durable performance, the full-carbon Oso features our first-ever upper-link suspension dw-link platform. It stacks 155mm of rear travel with 170mm up front and is powered by a Bosch Performance Line CX Motor.
Surrounding that motor, we designed a frame that would allow riders of all sizes to feel equally comfortable. Sizes large and extra-large feature 444mm chainstays and matching 29-inch wheels, while the small and medium get a mixed-wheel setup and shorter, 439mm stays. The effective seat angle is also size-specific, ranging from 77 degrees on the small up to 79 degrees on the extra large, which offers a consistent ride experience across all sizes. We also adjusted the reach and stack height to match our existing models, so the Oso fits and rides like an Ibis. And all frames have a 64-degree head angle. Because enduro.
Our patented dw-link suspension offers an unfair combination of traction and efficiency. And this dw-link was tailor-made to satisfy the complicated demands made by full power eMTBs. We tuned it to be more progressive than anything we have ever made. Thanks to the upper link's buttery initial leverage rate and riot-ready late-stroke progressivity, the Oso is the perfect platform for a coil shock. Rear travel can be bumped up to 170mm by swapping the 205 x 60mm rear shock to a 205 x 65mm. You can also lift the fork travel up to 180 or 190mm. We'll even let you run a dual crown. In both configurations, the Oso is stable yet responsive, mimicking the experience of the do-absolutely-anything Ripmo. Except, now with a motor.
BOSCH PERFORMANCE CX MOTOR
The quiet, powerful 85 NM Bosch Performance motor offers the most natural-feeling acceleration since the invention of gravity. It is also the most dependable motor on the market, with a 25,000-mile design life. The motor is paired with a UL certified 750Wh battery (625Wh on small), so you can keep riding, and riding, and riding. On top of that, you get Bosch's 2-year warranty, a global network of dealers, and excellent customer service. Along with the industry leading durability of the Bosch motor, our suspension linkages are in a class of their own—even in the most challenging conditions. That's why we offer a lifetime bushing replacement warranty. The oversized bearings, tube-in-tube cable routing, built-in-fenders, and easy-to-remove battery make this bike easy to service.
The frame features countless other perks, like a seven-year warranty, 2.5-inch tire clearance, a UDH hanger, trusted 148mm rear spacing, deep seatpost insertion, and room for a 26oz in-triangle bottle on the medium, large and extra-large and a 21oz on the small. Other subtle touches catering to the Oso's unapologetic e-bike-ness are its 200mm rear caliper mount, robust frame and motor protection, and cleanly integrated lights from boutique German bulbsmiths, Lupine.
The rest of the components bolted to the Oso were chosen specifically to keep this beast firmly in the reins. A Fox 38 and X2 shock, XT 4-piston brakes, 220mm rotors, and Double-Down-casing Maxxis tires, seated on our Blackbird Send alloy rims. We are keeping it simple and sticking just to that one build kit. Because, like the Oso itself, it is made of the stuff that we wanted to ride. A thousand decisions, each with the goal of building the most fun and capable adventure machine possible.
- Sizes Small – Medium: 29-inch front/27.5-inch rear
- Sizes Large – X-Large: 29-inch
|SEAT TUBE (IN)||15.5||16.3||16.3||16.8|
|EFFECTIVE TOP TUBE (mm)||573||607||638||669|
|HEAD TUBE (mm)||90||106||122||139|
|SEAT TUBE ANGLE||77 °||77 °||78⁰||79⁰|
|SADDLE HEIGHT FOR SEAT TUBE ANGLE (mm)||655||705||765||820|
|HEAD TUBE ANGLE||64 °||64⁰||64 °||64 °|
|BB DROP (mm)||F : 31 / R : 14||F : 31 / R : 14||31||28|
|BB HEIGHT (mm)||341||341||340||340|
|Fork||FOX PERFORMANCE SERIES, FLOAT 38, 170mm, 29”, 110mm x 15mm|
|Rear Shock||FOX PERFORMANCE ELITE SERIES, X2, 205mm x 60mm|
|Rims||BLACKBIRD SEND I / SEND II, ALUMINUM, SM-MD: F-29”/R-27.5”, LG-XL: F/R-29”|
FRONT: MAXXIS ASSEGAI, 29” X 2.5”, DUAL COMPOUND, DOUBLE DOWN, TR, WT
REAR: MAXXIS DISSECTOR, SM-MD: 27.5” X 2.5”, LG-XL: 29” X 2.5”, DOUBLE DOWN, TR, WT
|Crankset||SRAM EX1 E-CRANK, 32T RING, IBIS SPIDER|
|Shifters||SRAM GX EAGLE|
|Rear Derailleur||SRAM GX EAGLE|
|Cassette/Freewheel||SRAM GX, XG 1275, 10-52T|
|Chain||SRAM GX EAGLE|
|Brakes||SHIMANO XT M8120, 4-PISTON|
|Rotors||SHIMANO SM-RT66, 220mm|
|Handlebars||BLACKBIRD CARBON, 31.8mm, 800mm|
|Tape/Grips||LIZARD SKIN CHARGER EVO|
|Stem||IBIS, 31.8mm, SM-MD: 40mm, LG-XL: 50mm|
|Headset||CANE CREEK 40: ZS44/ZS56|
|Seatpost||BIKE YOKE REVIVE, SM: 125mm, MD: 160mm, LG: 185mm, XL: 213mm|
|Saddle||SDG BEL-AIR, V3|
|Accessories & Extras||
FRONT LIGHT: LUPINE SL F E-BIKE LIGHT, 600 LUMEN LOW, 900 HIGH
REAR LIGHT: INTEGRATED LUPINE C14 E-BIKE TAIL LIGHT, 45 LUMEN
WARRANTY: • 7 YEAR FRAME WARRANTY • 2 YEAR SMART SYSTEM WARRANTY THROUGH BOSCH • LIFETIME REPLACEMENT ON BUSHINGS
|Motor||BOSCH PERFORMANCE LINE CX|
|Battery||REMOVABLE BOSCH POWERTUBE 750 Wh|
|Controller/Display||BOSCH KIOX 300|
* Subject to change without notice.
