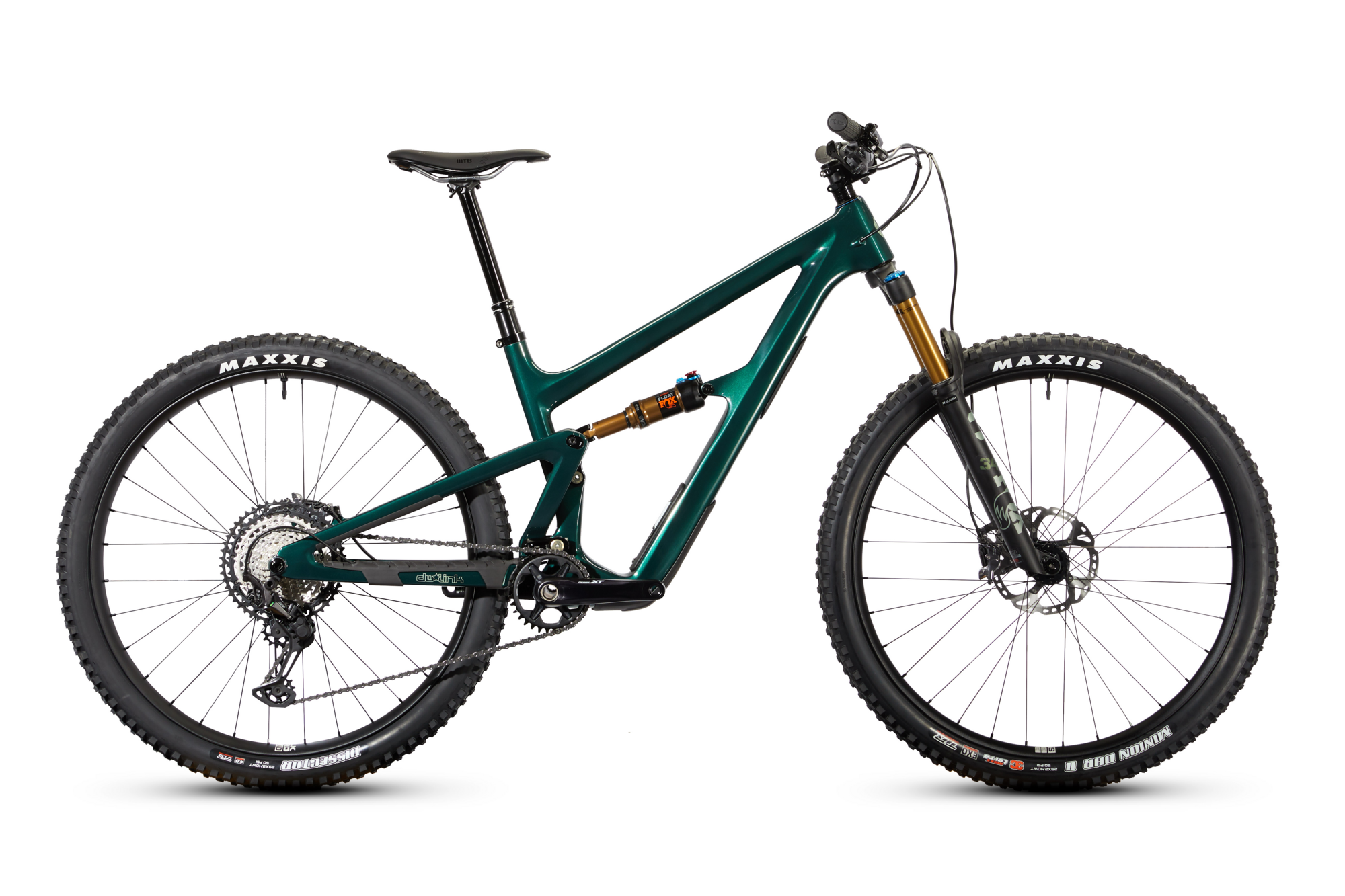

Ibis Ripley V5 SLX
$5,599.00
Details
Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.
*Specs may vary from image displayed*
| Frame Size | Small | Medium | Extra Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (mm) | 395 | 400 | 416 | 457 | 477 |
| Top Tube (mm) | 577 | 604 | 629 | 654 | 684 |
| Head Tube (mm) | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29er (mm) | 436 | 436 | 437 | 440 | 442 |
| Chainstay MX (mm) | 433 | 433 | 434 | 436 | 438 |
| Seat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
| Saddle Height For Seat Tube Angle (mm) | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase (mm) | 1187 | 1211 | 1241 | 1279 | 1321 |
| Stack (mm) | 613 | 619 | 629 | 640 | 650 |
| Reach (mm) | 440 | 460 | 483 | 511 | 545 |
| BB Drop 29er (mm) | 48 | 45 | 42 | 39 | 36 |
| BB Drop MX (mm) | 28 | 25 | 22 | 19 | 16 |
| BB Height (mm) | 326 | 329 | 332 | 335 | 338 |
| Standover (mm) | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop (mm) | 140 | 170 | 185 | 213 | 213 |
| Crank Length (mm) | 165 | 165 | 170 | 170 | 170 |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Fox Float 34 Factory Series Grip X 140mm, 29”, 110x15 |
| Hubs |
Front Hub Ibis Logo Front Hub, 110x15, 32 Hole Rear Hub Ibis Logo Rear Hub, 148x12, 32 Hole |
| Rims | Ibis Send Alloy, 32 hole, 29" XM -> XL, Ibis Send Alloy, 32 hole, 27.5" S & M |
| Stem | Ibis 31.8mm |
| Chain | Shimano SLX M7100 |
| Frame | Ripley V5 |
| Tires |
Front Tire: Maxxis DHR2 29" x 2.4" Exo TR Rear Tire: Maxxis Rekon 29" x 2.4" Exo TR |
| Brakes | Shimano SLX M7120 4p |
| Rotors | Shimano SM-RT66 180 |
| Saddle | WTB Silverado Fusion 142 |
| Spokes | Sapim Dlight Double Butted |
| Wheels | Send I 29 Alloy Front Wheel 110, Send II 29 Alloy Rear Wheel 148 MS |
| Headset | Cane Creek 40: ZS44/ZS56 |
| Crankset | Shimano SLX M7100 24mm spindle, 30t Alloy Ring |
| Seatpost | KS Vantage Dropper |
| Shifters | Shimano SLX M7100 |
| Chainrings | 30t Alloy Ring |
| Handlebars | Ibis 800mm Hi Fi Bar |
| Rear Shock | Fox Float Factory Series, DPS with EVOL, 210 x 52.5 |
| Tape/Grips | Lizard Skin Charger |
| Brake Levers | Shimano SLX M7120 |
| Bottom Bracket | Shimano SLX BB52 |
| Rear Derailleur | Shimano SLX M7100 Shadow Plus |
| Accessories & Extras | Cotopaxi Stow Bags |
| Cassette/Freewheel | Shimano SLX 10-51 |
| Front Derailleur | N/A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue Hour / Medium/Large / 29-inch | 840345311290 | RLC3BUSSXAL3525 |
| Green Flash / Medium/Large / 29-inch | 840345310958 | RLC3GNSSXAL3525 |
| Blue Hour / Large / 29-inch | 840345311368 | RLC4BUSSXAL3525 |
| Blue Hour / Medium / 29-inch | 840345311221 | RLC2BUSSXAL3525 |
| Green Flash / X-Large / 29-inch | 840345311092 | RLC5GNSSXAL3525 |
| Blue Hour / X-Large / 29-inch | 840345311436 | RLC5BUSSXAL3525 |
| Green Flash / Large / 29-inch | 840345311023 | RLC4GNSSXAL3525 |
| Green Flash / Small / 29-inch | 840345310767 | RLC1GNSSXAL3525 |
| Green Flash / Medium / 29-inch | 840345310880 | RLC2GNSSXAL3525 |
| Blue Hour / Small / 29-inch | 840345310873 | RLC1BUSSXAL3525 |
