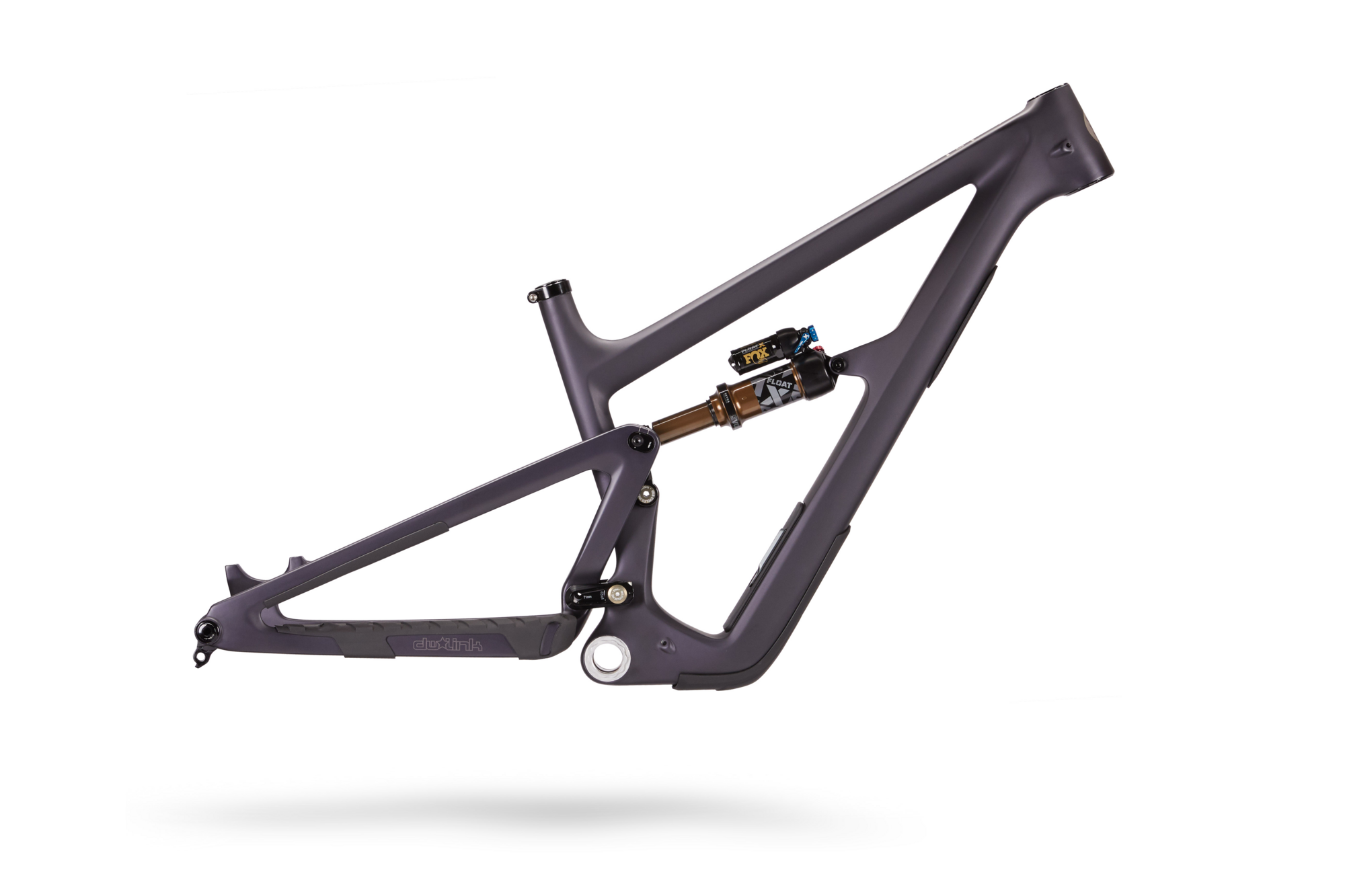

Ibis Ripmo V3 Frameset
$3,699.00
Details
The Ripmo isn't just a bike; it's a legend.
With multiple "Best in Test" awards and years of high level competition at the notoriously brutal Enduro World Series, it’s the ultimate trail-slaying machine. How do you improve on that?
The Ripmo is loaded with new features: internal downtube storage, a flip chip for mixed wheels, a slacker head angle, and increased coil compatibility. We've also expanded our sizing options and added size-specific details—right down to the bottom bracket height.
Wheel size:
Sizes Small – Medium: 29-inch front / 27.5-inch rear
Sizes Medium/Large – X-Large: 29-inch
*Specs may vary from image displayed*
| Frame Size | Small | Medium | Extra Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (mm) | 395 | 400 | 415 | 457 | 477 |
| Top Tube (mm) | 578 | 605 | 630 | 655 | 685 |
| Head Tube (mm) | 85 | 95 | 110 | 125 | 140 |
| Chainstay (mm) | 435 | 435 | 436 | 438 | 440 |
| Seat Tube Angle | 77° | 76.5° | 76.5° | 77° | 77.5° |
| Saddle Height For Seat Tube Angle (mm) | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Wheelbase (mm) | 1195 | 1219 | 1249 | 1286 | 1329 |
| Stack (mm) | 616 | 622 | 633 | 643 | 654 |
| Reach (mm) | 436 | 456 | 478 | 506 | 540 |
| BB Drop (mm) | 36 | 33 | 30 | 27 | 24 |
| BB Height (mm) | 338 | 341 | 344 | 349 | 350 |
| Standover (mm) | 693 | 734 | 757 | 772 | 784 |
| Recommended Seatpost Drop (mm) | 140 | 170 | 185 | 213 | 213 |
| Crank Length (mm) | 165 | 165 | 170 | 170 | 170 |
Specs
| Frame | Ripmo V3 |
|---|---|
| Rear Shock | Fox Float X Factory Series, 2 Pos Adj with EVOL, 230 x 60 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Swamp Monster / Medium/Large / 29-inch | 840345310675 | RMC3OLS00000025 | 210000032112 |
| Swamp Monster / Medium / 29-inch | 840345310651 | RMC2OLS00000025 | 210000032127 |
| Heckleberry Purple / Large / 29-inch | 840345310705 | RMC4PRS00000025 | 210000032126 |
