Details

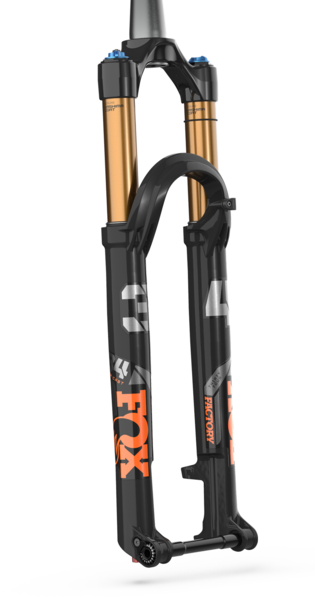

Podium performance: tailor made for the rigors of modern XC racing. The lightest 34 ever, the all-new 34 Step-Cast is designed from the ground up to deliver uncompromising XC race performance with class-leading tunability, chassis stiffness and strength.
"Factory" says it all—feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
The 34 Step-Cast Factory is the choice for riders who want an all-round fork that performs in a vast range of applications: lightweight for climbs and highly capable for demanding terrain with enough travel to instill confidence when the trail gets rough. Weight savings are attributed to external lower casting steps, hollow lower section, and shortened shaft lengths.
- 44mm offset
- Step-Cast chassis
- Genuine Kashima Coating on upper tubes
- FIT4 damper and FLOAT EVOL air spring
- Dedicated air spring and damper tune are specific for this travel range, with a lighter tune at mid and higher velocities
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specs
Wheel Size | 27.5-inch |
---|---|
Brake Compatibility | 160 direct Post Mount, Up to 203 compatible |
Steerer Diameter/Material | 1.5" tapered |
Stanchion Diameter/Materials | 34mm Kashima Coated |
Dropouts | 110 x 15mm QR |
Spring | FLOAT EVOL air spring |
Damper | FIT4 |
Adjustments | Low Speed Compression Damping, Rebound Damping |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
110 x 15mm / Shiny Black / 120mm / 27.5-inch | 821973384610 | 910-20-947 |
